Electronics board

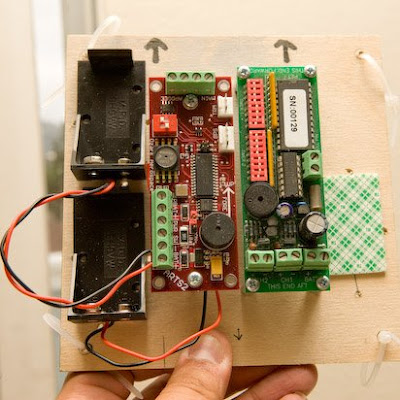

Here's the final physical electronics board layout:
The two holders on the left and the two-sided foam tape on the right will hold the three 9V batteries.  I'll also bind all three on the board with zip ties hence the four holes on each side of each battery.
